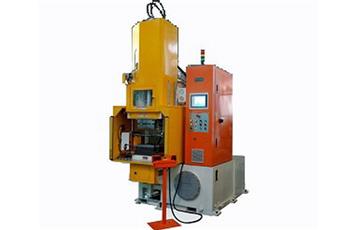

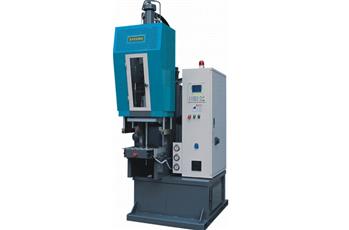

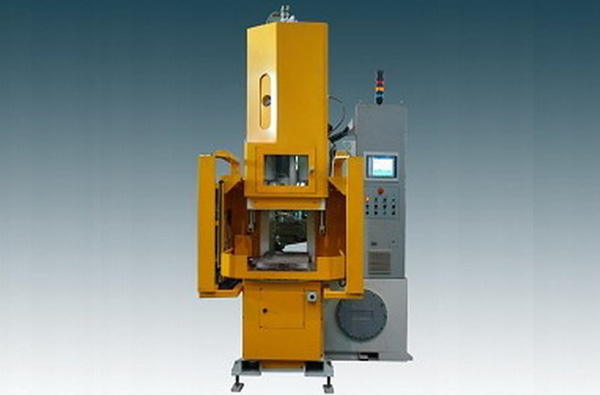

RC series C-frame rubber injection machine with accessible C-frame structure facilitates the operation in 3 sides. It can be equipped with the injection unit, c-frame and top clamping structure, precise electric variable displacement pump or servo motor piston pump to realize high precise injection volume. The silicon rubber injection molding machine is widely applied for precise rubber articles, sealing strips and connectors, etc.
Features
1. The RC series C-frame rubber injection machine adopts first-in-first-out (FIFO) method with plasticizing and injection completely separated.
2. The machine is featured with precise injection volume and minimum injection runner length; the floating-type nozzle ensures excellent temperature control.
3. The clamping unit with 3-sides-accessible C-frame structure facilitates the operation.
4. The whole RC product line is approved by CE safety standards.
Advantages
RC series silicon rubber injection molding machine adopts first-in-first-out method injection unit or plastic injection unit, which is designed according to European standard with the advantages of high precision and fast speed.
Parameter
|
Item
|
Unit
|
DKM-RC25
|
DKM-RC40
|
DKM-RC80
|
|
Injection Pressure
|
bar
|
1560
|
1560
|
1800
|
|
Injection Volume
|
cc
|
120
|
120
|
200
|
|
Clamping Force
|
kN
|
250
|
400
|
800
|
|
Mould Opening Stroke
|
mm
|
380
|
380
|
360
|
|
Distance Between Heating Plates
|
mm
|
430
|
430
|
530
|
|
Min. Mould Thickness
|
mm
|
50
|
50
|
170
|
|
Heating Plate Dimension
|
mm
|
300x400
|
300x400
|
400x400
|
|
System Pressure
|
bar
|
250
|
250
|
250
|
|
Machine Weight
|
ton
|
2.5
|
3
|
6
|
|
Machine Dim. (LxWxH)
|
m
|
1.1x1.36x2.9
|
1.2x1.4x3
|
1.5x1.95x3.28
|
|
Hydraulic Pump Power
|
kW
|
7.5
|
7.5
|
11
|
|
Heating Plate Power
|
kW
|
7
|
9
|
7.4
|
|
Total Power
|
kW
|
16
|
20
|
30
|
