1. RL series large horizontal rubber injection machine adopts advanced German injection system and the mature two-platen clamping system of Hong Kong Cosmos Machinery.
2. The rubber injection molding machine is featured with high precision, reliable and stable performance, high output and easy maintenance.
3. Easy maintenance and convenient operation help to improve the production efficiency.
4. As an experienced rubber injection molding machine manufacturer in China, the whole RL product line is accredited by CE safety standards.

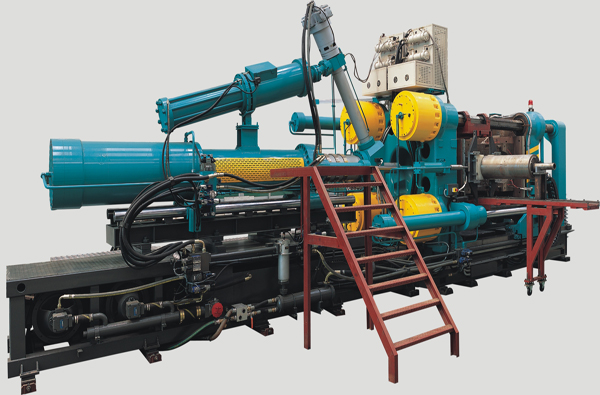

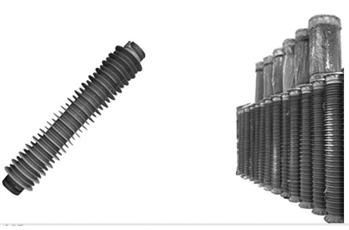

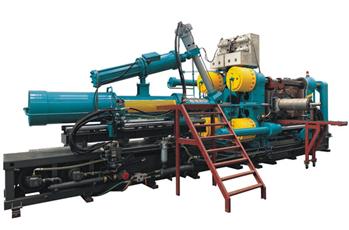

RL series large horizontal rubber injection machine is an ultra-large type RIM developed for producing large hollow insulators by adopting advanced German injection unit and the mature two-platen clamping system of Hong Kong Cosmos Machinery. The whole machine adopts European style structure design and its key parts are designed by German experts. The powerful machining capacity of CML Group, parent company of DEKUMA, guarantee the high quality standard of every single part and even the whole machine.

Item	Unit	DKM-RL900	DKM-RL1200	DKM-RL1800	DKM-RL2800
Injection Pressure	bar	1500	1487	1200	1257
Injection Volume	cc	21000	33000	40000	100000
Clamping Force	kN	9000	12000	18000	28150
Mould Opening Stroke	mm	1710	2010	2210	3150
Distance Between Heating Plates	mm	2160	2560	2710	4300
Min. Mould Thickness	mm	450	550	500	1150
Clear Distance Between Columns	mm	1080x1080	1280x1280	1680x1680	2080x1880
Heating Plate Dimension	mm	1650x800	1800x1120	2600x1200	2800x1200
System Pressure	bar	200	200	200	225
Machine Weight	ton	45	59	150	210
Machine Dim. (LxWxH)	m	10.4x5.4x4	11x9x4.02	12x10x4.5	14x10x4.9
Hydraulic Pump Power	kW	67.5	81.5	90	105
Heating Plate Power	kW	75.6	77	140	160
Total Power	kW	170	183	250	292
