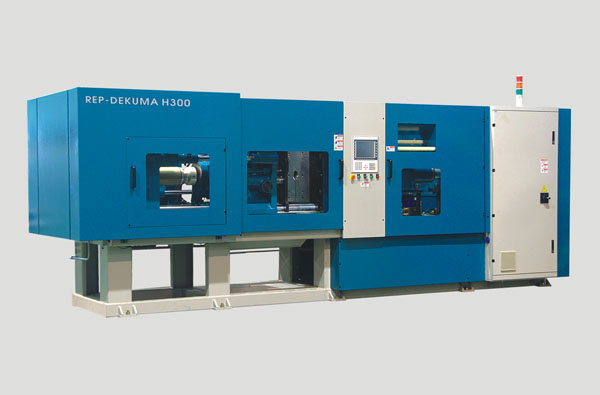

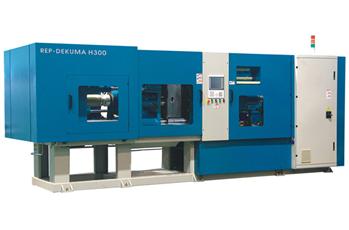

H series horizontal rubber injection machine consists of first-in first-out injection unit and horizontal hydraulic vertical compression clamping unit. It adopts PCL intelligent control and hydraulic drive to realize the complete automatic productive process including melting, injection, vulcanization and moulding. The rubber injection machine is widely applied to process precise rubber articles, sealing strips and connectors, etc.
Features
1. The machine applies hydraulic straight pressure clamping structure.
2. In order to meet the needs of different mould and product, side ejectors and middle ejectors are equipped for fixed plate and movable plate.
3. The H series horizontal rubber injection machine adopts close-loop control clamping system, combined with brushing system for automatic demold and FIFO injection system.
4. Separated oil temperature control for barrel and accumulator, B&R X20 control system and 10.4' touch screen with key-press are mounted on the rubber injection machine.
5. As an experienced rubber injection machine supplier in China, the whole REP-H product line is approved by CE safety standards.
Advantages
H series horizontal rubber injection machine is specially developed for O-ring. The whole machine is designed according to European style structure with full-automatic stripper machine to realize automatic production. It is accredited by CE certificates.
Parameter
|
Item
|
Unit
|
TTH-300
|
TTH-450
|
|
Injection Pressure
|
bar
|
2000
|
2000
|
2000
|
|
Injection Volume
|
cc
|
1000
|
2000
|
2000
|
|
Screw Diameter
|
mm
|
32
|
40
|
40
|
|
Screw Speed
|
rpm
|
0-210
|
0-220
|
0-220
|
|
Clamping Force
|
kN
|
3000
|
4500
|
|
Mould Opening Stroke
|
mm
|
450
|
500
|
|
Distance Between Heating Plates
|
mm
|
900
|
1080
|
|
Min. Mould Thickness
|
mm
|
200
|
240
|
|
Clear Distance Between Columns
|
mm
|
580x580
|
800x750
|
|
Heating Plate Dimension
|
mm
|
550x550
|
750x800
|
|
System Pressure
|
bar
|
250
|
250
|
|
Machine Weight
|
ton
|
10.6
|
14.2
|
|
Machine Dim. (LxWxH)
|
m
|
5700x1700x2030
|
6390x1960x2130
|
|
Hydraulic Pump Power
|
kW
|
37
|
37
|
|
Heating Plate Power
|
kW
|
14
|
24
|
|
Total Power
|
kW
|
56.5
|
66.5
|
