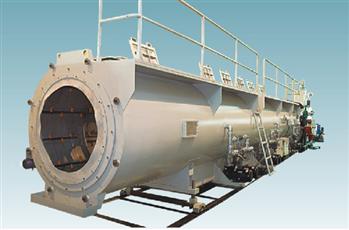

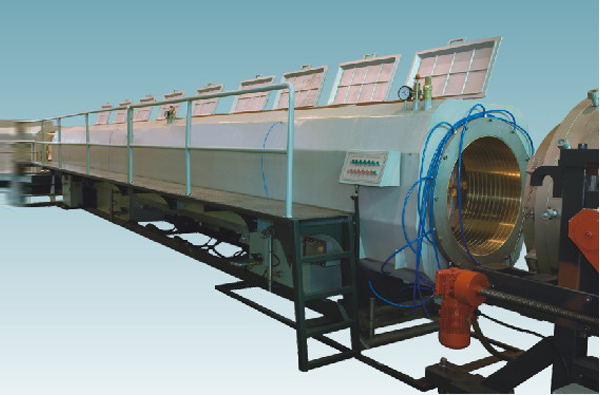

Vacuum calibrator, with the advantages of high precision and good cooling effect, is an equipment used for cooling and sizing pipes. Two-circuit water supply system guarantees continuous production and high productive efficiency.
Features
1. Optimum vacuum calibration tank for tubes extrusion and water way system are made of stainless steel.
2. Two-circuit water supply system is equipped with independent filter to prevent the nozzle from being blocked.
3. Quick response vacuum control system guarantees the reliable vacuum state.
4. High efficiency spray cooling guarantees the quick shaping under vacuum condition.
5. The vacuum calibration adopts automatic water temperature and level control.
6. Single chamber and/or double chamber vacuum calibrator are available according to the article requirement.
Parameter
|
TYPE
|
|
DKM-EDJ63
|
DKM-EDJ125
|
DKM-EDJ160
|
DKM-EDJ250
|
DKM-EDJ315
|
DKM-EDJ450
|
DKM-EDJ630
|
DKM-EDJ800
|
DKM-EDJ1200
|
DKM-EDJ1600
|
DKM-EDJ2000
|
|
Pipe Diameter
|
mm
|
Ø10-Ø63
|
Ø20-Ø125
|
Ø20-Ø160
|
Ø50-Ø250
|
Ø75-Ø315
|
Ø160-Ø450
|
Ø250-Ø630
|
Ø280-Ø800
|
Ø500-Ø1200
|
Ø710-Ø1600
|
Ø1200-Ø2000
|
|
Water Pump
|
kw
|
7.5
|
2X5.5
|
2X5.5
|
2X5.5
|
5.5+7.5
|
5.5+7.5
|
2x7.5
|
3x7.5
|
2x7.5+4x5.5
|
2x7.5+4x5.5
|
2x11+4x7.5
|
|
Vacuum Pump
|
kw
|
3
|
4
|
2X3
|
2x3
|
2x3
|
3+4
|
2x4
|
3x4
|
2x5+4x4
|
2x5+4x4
|
2x7.5+4x7.5
|
|
Vacuum Chamber Length
|
mm
|
9000/6000
|
9000/6000
|
9000/6000
|
9000/6000
|
9000/6000
|
9000/6000
|
12000/6000
|
12000/6000
|
12000/6000
|
12000/6000
|
12000
|
