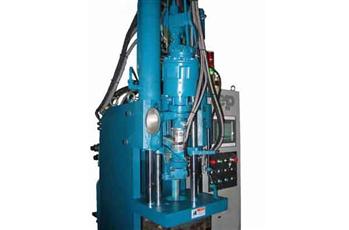

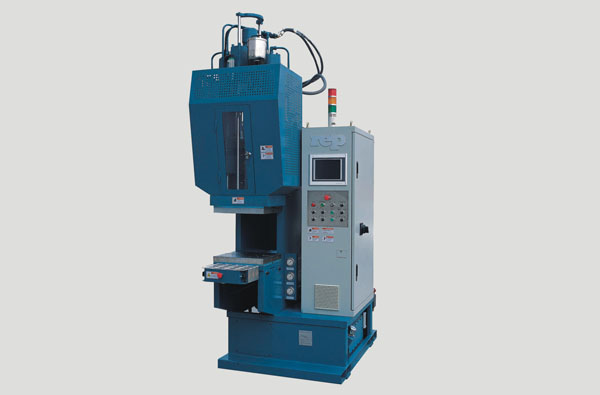

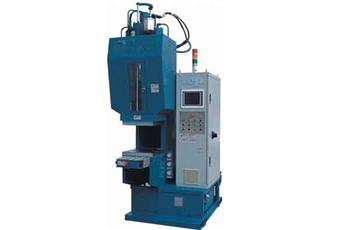

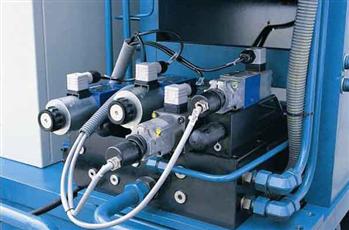

C series high precise C-frame rubber injection machine facilitates the operation in 3 sides. It can be equipped with the injection unit, c-frame and top clamping structure, precise electric variable displacement pump or servo motor piston pump to realize high precise injection volume. The rubber injection machine is widely applied for precise rubber articles, sealing strips and connectors, etc.
Features
1. The C series high precise C-frame rubber injection machine is co-developed by DEKUMA and REP FRANCE which is the leading supplier of rubber injection machine.
2. The machine is featured with high precision, sophisticated function and high stability.
3. Less working space is required for operation.
4. The whole REP-C rubber injection machine production line is approved by CE safety standards.
Advantages
C series rubber injection machine with the injection unit for elastomer material is co-developed by DEKUMA and REP FRANCE which is the leading supplier of rubber injection machine. The machine is manufactured strictly according to European standard with the advantages of high precision, sophisticated function and stable performance, etc.
Parameter
|
Item
|
Unit
|
C25Y
|
C25P
|
C40Y
|
C40P
|
C80Y
|
C80P
|
|
Injection Pressure
|
bar
|
1560
|
1000
|
1560
|
1000
|
2300
|
1030
|
|
Injection Volume
|
cc
|
125
|
125
|
125
|
200
|
|
Screw Diameter
|
mm
|
20
|
40
|
20
|
40
|
25
|
40
|
|
Clamping Force
|
kN
|
255
|
400
|
800
|
800
|
|
Mould Opening Stroke
|
mm
|
375
|
375
|
350
|
475
|
|
Distance Between Heating Plates
|
mm
|
425
|
500
|
550
|
600
|
|
Min. Mould Thickness
|
mm
|
50
|
125
|
200
|
125
|
|
Heating Plate Dimension
|
mm
|
300x300
|
400x400
|
300x400
|
600x500
|
|
System Pressure
|
bar
|
250
|
250
|
250
|
250
|
|
Machine Weight
|
ton
|
2.8
|
3
|
5.2
|
6
|
|
Machine Dim. (LxWxH)
|
m
|
900x810x2735
|
1050x910x2810
|
2800x1750x3050
|
2780x1750x2950
|
|
Hydraulic Pump Power
|
kW
|
7.5
|
7.5
|
22
|
22
|
|
Heating Plate Power
|
kW
|
9
|
9
|
5.8
|
8.2
|
Note: "Y” applies to rubber; "P” applies to plastic.
