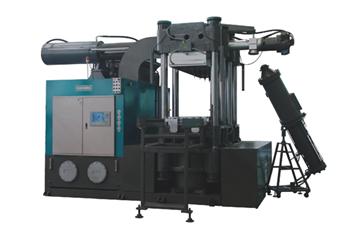

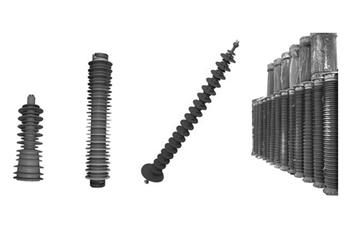

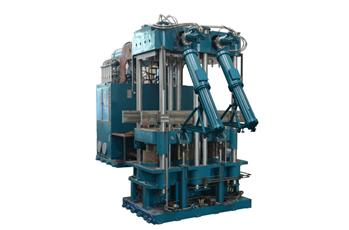

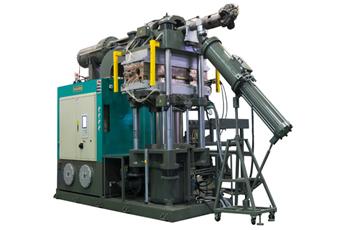

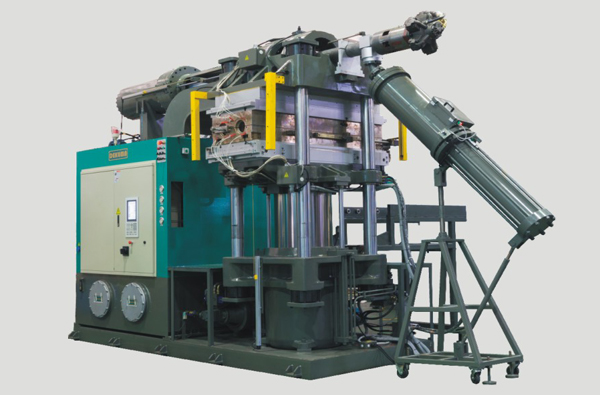

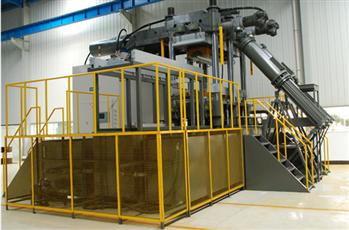

RA series vertical rubber injection machine consists of a horizontal injection unit and a vertical clamping unit. It adopts PCL intelligent system and hydraulic drive to fulfill complete automatic productive process including melting, injection, and vulcanization, moulding process. The rubber injection machine is widely applied to process hollow core insulator, long rod insulator, surge arrester, cable accessories, and switch gear, etc.
Features
1. The RA vertical rubber injection machine is designed particularly for high voltage composite insulator applications.
2. Precise components and high quality supporting parts extend its service life.
3. Close-loop temperature control guarantees uniform vulcanizing process.
4. Multi-cavity cold runner block is designed for reducing material wastage and increasing production efficiency.
5. Mould is designed according to product specification and production requirement.
6. As an experienced rubber injection machine manufacturer in China, the whole RA product line is approved by CE safety standards.
Advantages
RA series vertical rubber injection machine is designed based on more than 20 years practical experience, which is stable and reliable. The whole machine adopts European style structure design and its key parts are designed by German experts. The powerful machining capacity of CML Group, parent company of DEKUMA, guarantee the high quality standard of every single part and even the whole machine.
Parameter
|
Item
|
Unit
|
RIM for Rod Insulator
|
RIM for Hollow Insulator
|
|
DKM-RA300
|
DKM-RA500
|
DKM-RA1200
|
DKM-RA1500
|
DKM-RA650
|
DKM-RA100
|
DKM-RA1600
|
DMM-RA2400
|
|
Injection Pressure
|
bar
|
1080/1350
|
1150/1480
|
1200
|
1420
|
1200/1000
|
1200
|
1200
|
1200
|
|
Injection Volume
|
cc
|
5000/4000
|
12600/10000
|
25000
|
40000
|
15000/18000
|
25000
|
25000X2
|
50000X2
|
|
Clamping Force
|
kN
|
3000
|
5000
|
12000
|
15000
|
6500
|
10000
|
16000
|
24000
|
|
Mould Opening Stroke
|
mm
|
570
|
700
|
700
|
700
|
700
|
800
|
1000
|
1200
|
|
Distance Between Heating Plates
|
mm
|
780
|
940
|
1050
|
1050
|
1200
|
1160
|
1500
|
2000
|
|
Min. Mould Thickness
|
mm
|
210
|
240
|
350
|
350
|
500
|
360
|
500
|
800
|
|
Heating Plate Dimension
|
mm
|
600X1000
|
630X1500
|
800X2600
|
800X3700
|
630X1600
|
1000X1800
|
1000X2600
|
1200X3200
|
|
System Pressure
|
bar
|
200
|
220
|
210
|
210
|
210
|
200
|
210
|
210
|
|
Machine Weight
|
ton
|
9
|
19
|
49
|
65
|
24
|
45
|
95
|
140
|
|
Machine Dim. (LxWxH)
|
m
|
4.3X1.9X3.3
|
5.6X3X3.8
|
6.7X4.8X4
|
8.7X8X4
|
5.7X2.8X3.95
|
6.9X5.2X4.5
|
8.1X7.5X5.1
|
8.6X9X5.6
|
|
Hydraulic Pump Power
|
kW
|
15
|
30
|
60
|
90
|
31
|
41
|
89
|
105
|
|
Heating Plate Power
|
kW
|
25
|
36
|
90
|
133
|
60
|
80
|
120
|
180
|
|
Total Power
|
kW
|
45
|
72
|
170
|
216
|
110
|
150
|
240
|
320
|
