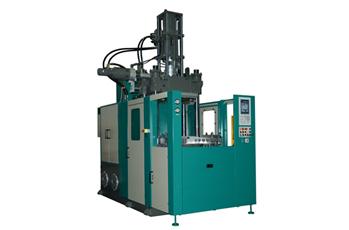

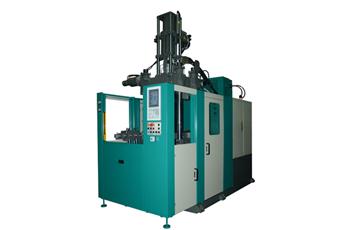

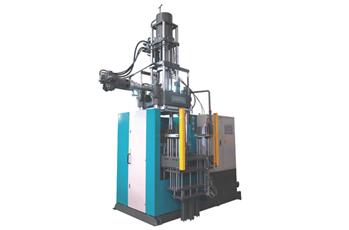

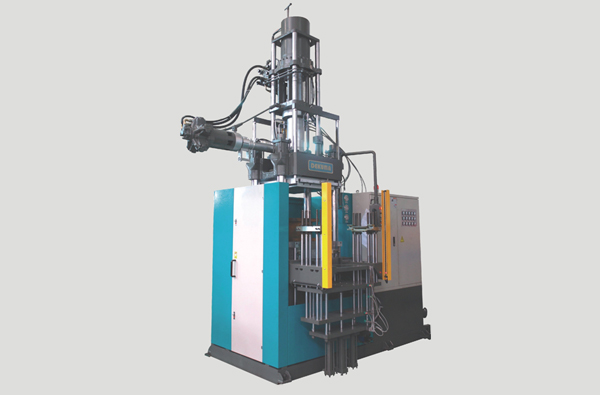

RV series vertical rubber injection machine consists of a vertical injection unit and a vertical clamping unit. It adopts PLC intelligent control and hydraulic drive to realize complete automatic productive process including melting, injection, and vulcanization, moulding process. The vertical rubber injection moulding machine can be widely used for processing vibration absorption rubber, oil sealing, O-ring, braking rubber bowl, rubber mould, door and window sealing strip connecting, etc.
Features
1. The machine is featured with high precision, high output and extremely long service life.
2. Precise components and high quality supporting parts extend its service life.
3. Closed loop temperature control ensures uniform vulcanizing process.
4. Specialized design of the injection and plasticizing unit ensure precise control of injection volume.
5. Modular design is adaptable for different products, processes and automation requirements.
6. The RV vertical rubber injection machine is suitable for all kinds of elastomers like NR, EPDM, HTV, CR…
Advantages
RV series vertical rubber injection moulding machine is designed based on more than 20 years practical experience, which is stable and reliable. The whole machine adopts European style structure design and its key parts are designed by German experts. The powerful machining capacity of CML Group, parent company of DEKUMA, guarantee the high quality standard of every single part and even the whole machine.
Parameter
|
Item
|
Unit
|
DKM-RV200
|
DKM-RV300
|
DKM-RV400
|
DKM-RV500
|
|
Injection Pressure
|
bar
|
1750
|
1750
|
1750
|
1750
|
|
Injection Volume
|
cc
|
2000
|
3000
|
4000
|
5000
|
|
Clamping Force
|
kN
|
2000
|
3000
|
4000
|
5000
|
|
Mould Opening Stroke
|
mm
|
480
|
570
|
600
|
760
|
|
Distance Between Heating Plates
|
mm
|
600
|
640
|
700
|
860
|
|
Min. Mould Thickness
|
mm
|
120
|
70
|
100
|
100
|
|
Heating Plate Dimension
|
mm
|
500x500
|
650x650
|
700x700
|
700x720
|
|
Mould Sliding Stroke
|
mm
|
600
|
650
|
680
|
800
|
|
System Pressure
|
bar
|
225
|
200
|
210
|
220
|
|
Machine Weight
|
ton
|
6.5
|
8.5
|
10
|
14.5
|
|
Machine Dim. (LxWxH)
|
m
|
3.7x2.2x3.7
|
3.9x2.4x4.1
|
3.7x2.45x4.9
|
3.9x3x5.16
|
|
Hydraulic Pump Power
|
kW
|
11
|
15
|
22
|
22
|
|
Heating Plate Power
|
kW
|
14
|
16
|
19
|
20
|
|
Total Power
|
kW
|
29
|
35
|
44
|
46
|
